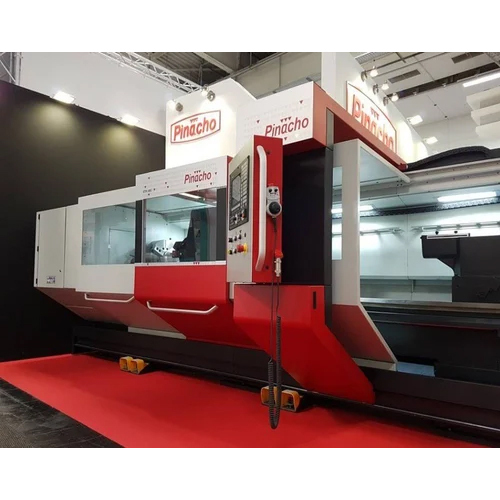

CNC Lathe Machine

4500000 INR/Unit

Get a Price/Quote

Product Details:

Cutting Speed 268-750 RPM
CNC Or Not CNC
Automatic Grade Automatic
Control System Human Machine Interface
Weight (kg) 9060 Kilograms (kg)
Feature Lower Energy Consumption
Warranty Yes
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

CNC Lathe Machine Price And Quantity

Price 4500000 INR/Unit
Minimum Order Quantity 1 Unit

CNC Lathe Machine Product Specifications

CNC Or Not CNC
Warranty Yes
Cutting Speed 268-750 RPM
Control System Human Machine Interface
Automatic Grade Automatic
Feature Lower Energy Consumption
Weight (kg) 9060 Kilograms (kg)

CNC Lathe Machine Trade Information

Payment Terms Cash in Advance (CID)
Supply Ability 10 Unit Per Month
Delivery Time 30 Days
Main Domestic Market All India

Product Description

Tail Stock Morse Taper6 MTVerification StandardDIN 8605Coolant Pump Power0.57 kWLength of Carriage900 / 35 mm / inSpeed Range268-750 rpmMain Motor Power17 kWCross Slide Travel400 / 16 mm / inLength of Cross Slide750 / 30 mm / inWorking Feeds Z X0-7000 mm/minX Axis Ball Screw and Pitch32/5 mmPosition Accuracy0.01 mmCenter Distance5000 / 197 mm / inZ Axis Ball Screw and Pitch50/10 mmControlControl Fanuc 0i-TF / Fagor 8055i / FL-TC / Siemens 828DStations of Standard Automatic Turret8Follow Rest Capacity70-290 / 3-11 1/2 mm / inTotal Weight9060 KgMain Spindle Nose Taper6 MTRepeatability0.01 mmBed Width425 / 17 mm / inTool Shank32x32 / 1 1/4x1 1/4 mm / inBoring Bar50 / 2 mm / inTotal Width2077 mmHeadstock Main Spindle Bore230 / 9 mm / inSwing Over Cross Slide515 / 20 mm / inMain Spindle NoseA2-15 / --Fixed Steady Capacity300-530 / 12-21 mm / inCoolant Tank Capacity350 LCenter Height400 / 16 mm / inTail Stock Barrel96 / 4 mm / inTotal Length7557 mmTotal Height2227 mmSwing Over Carriage720 / 28 mm / inRapid Traverse Z10 m/minCoolant Pump Flow50 l/minTail Stock Barrel Travel215 / 9 mm / inSwing Over Bed805 / 32 mm / in

FAQs of CNC Lathe Machine:

Q: What is the warranty provided for the CNC Lathe Machine?

A: Yes, the CNC Lathe Machine comes with a warranty.

Q: What type of control system does the CNC Lathe Machine use?

A: The CNC Lathe Machine uses a Human Machine Interface control system.

Q: Is the CNC Lathe Machine fully automatic?

A: Yes, the CNC Lathe Machine is equipped with an automatic grade.

Q: What is the cutting speed range of the CNC Lathe Machine?

A: The CNC Lathe Machine operates at a cutting speed of 268-750 RPM.

Q: Does the CNC Lathe Machine promote energy efficiency?

A: Yes, the CNC Lathe Machine features lower energy consumption for optimal efficiency.

Q: What is the weight of the CNC Lathe Machine?

A: The CNC Lathe Machine weighs 9060 kilograms (kg).
