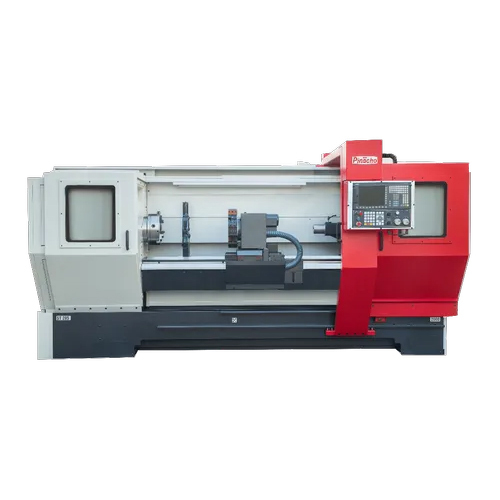

Educational CNC Lathe Machine

Product Description

Tool Shank32x32 / 1 1/4x1 1/4 mm / inControlControl Fanuc 0i-TF / Fagor 8055i / FL-TC / Siemens 828DSwing Over Carriage720 / 28 mm / inTail Stock Morse Taper6 MTCoolant Tank Capacity300 LRepeatability0.01 mmPosition Accuracy0.01 mmWorking Feeds Z X0-7000 mm/minX Axis Ball Screw and Pitch32/5 mmCoolant Pump Flow50 l/minBoring Bar50 / 2 mm / inSwing Over Bed805 / 32 mm / inTotal Width2077 mmTotal Length6557 mmVerification StandardDIN 8605Main Spindle NoseA2-15 / --Swing Over Cross Slide515 / 20 mm / inMain Spindle Nose Taper6 MTRapid Traverse Z10 m/minTail Stock Barrel Travel215 / 9 mm / inCoolant Pump Power0.57 kWStations of Standard Automatic Turret8Center Distance4000 / 157 mm / inLength of Carriage900 / 35 mm / inSpeed Range268-750 rpmZ Axis Ball Screw and Pitch50/10 mmTotal Height2227 mmTotal Weight7560 KgHeadstock Main Spindle Bore230 / 9 mm / inFixed Steady Capacity300-530 / 12-21 mm / inFollow Rest Capacity70-290 / 3-11 1/2 mm / inMain Motor Power17 kWBed Width425 / 17 mm / inLength of Cross Slide750 / 30 mm / inTail Stock Barrel96 / 4 mm / inCenter Height400 / 16 mm / inCross Slide Travel400 / 16 mm / in
