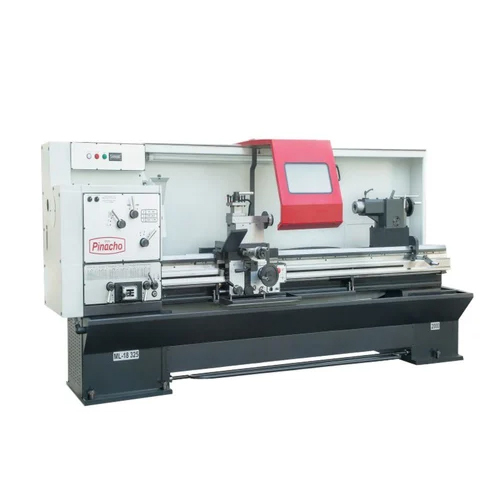

ML-200-1000 Geared Lathe Machine

About ML-200-1000 Geared Lathe Machine

BrandPinachoMetric Threads0.5-7.5 mmFollow Rest Capacity10-80 / 1/2-7 1/4 mm / inLongitudinal Feeds0.05-0.752 mm/revNorton Box No Threads and Feeds44Cross Feeds0.025-0.376 mm/revCenter Distance1000 / 40 mm / inLead Screw Rod Pitch6 / 1/4 mm / inTool Shank20x20 / 3/4 x 3/4 mm / inCoolant Tank Capacity55 LSwing Over Gap560 / 22 mm / inSwing Over Carriage380 / 115 mm / inBed Width250 / 10 mm / inSwing Over Bed402 / 16 mm / inPich Diametral Threads120-8 D.P.Tail Stock Barrel Travel180 / 7 mm / inMain Motor Power4 kWGap Length From Face Plate120 / 5 mm / inTotal Weight1190 KgTool Post Slide Travel110 / 4 1/4 mm / inTotal Width910 mmCross Slide Travel200 / 8 mm / inType of HeadstockCabezal con variador de velocidad electronicoVerification StandardDIN 8605Main Spindle NoseA2-5 / D1-5Fixed Steady Capacity110-200 / 5 1/2-8 mm / inCoolant Pump Power0.1 kWMain Spindle Nose Taper4 MTWhitworth Threads60-4 T.P.I.Tail Stock Barrel58/ 2 1/4 mm / inCenter Height200 / 8 mm / inTotal Length2390 mmTotal Height1625 mmSwing Over Cross Slide245 / 9 1/2 mm / inModular Threads0.25-3.75 mmTail Stock Morse Taper4 MTHeadstock Main Spindle Bore42 / 1 1/2 mm / in
