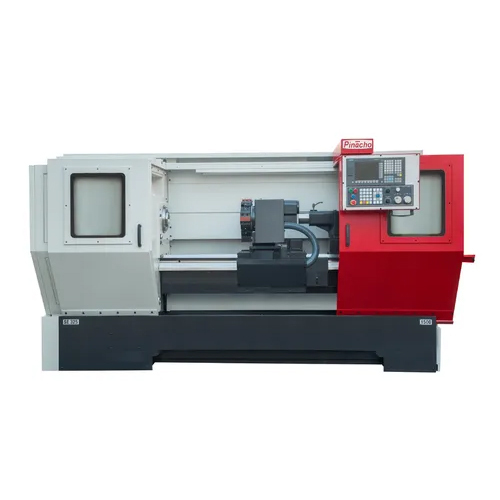

SE-325-1500 CNC Lathe Machine

About SE-325-1500 CNC Lathe Machine

BrandPinachoCross Feeds0.025-0.752 mm/revLead Screw Rod Pitch6/ 1/4 mm / inSwing Over Gap910 / 35 3/4 mm / inTool Post Slide Travel165 / 6 1/2 mm / inTool Shank25x25 / 1x1 mm / inWhitworth Threads60-2 T.P.I.Modular Threads0.25-7.5 mmSwing Over Cross Slide560 / 22 mm / inTail Stock Morse Taper5 MTCenter Height325 / 13 mm / inNorton Box No Threads And Feeds55Longitudinal Feeds0.05-1.5 mm/revFixed Steady Capacity10-180 / 1/2-7 1/4 mm / inGap Length From Face Plate220 / 9 mm / inCross Slide Travel340 / 12 3/4 mm / inTail Stock Barrel Travel220 / 8 1/2 mm / inMetric Threads0.5-15 mmTotal Weight2100 KgSwing Over Carriage595 / 23 mm / inHeadstock Main Spindle Bore105 / 4 mm / inMain Motor Power7.5 kWMain Spindle NoseA2-8 / D1-8Total Width1080 mmPich Diametral Threads120-4 D.P.Coolant Pump Power0.1 kWCoolant Tank Capacity111 LBed Width350 / 14 mm / inTotal Height1825 mmVerification StandardDIN 8605Tail Stock Barrel95 / 3 3/4 mm / inFollow Rest Capacity10-140 / 1/2-5 1/2 mm / inTotal Length3200 mmMain Spindle Nose Taper5 MTSwing Over Bed652 / 26 mm / in
