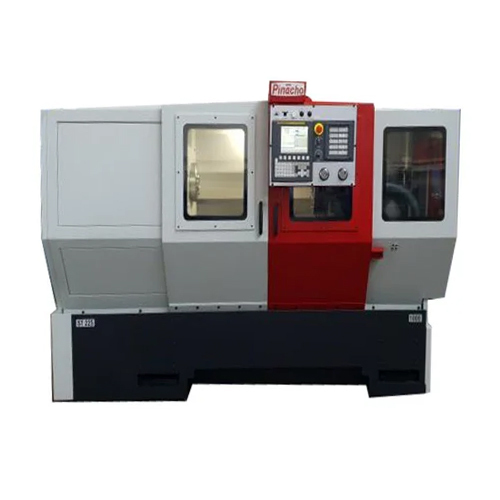

CNC Trainer Lathe Machine

Product Description

Speed Range356-1000 rpmCoolant Pump Flow50 l/minTotal Height2487 mmControlFanuc 0i-TF / Fagor 8055f / Siemens 828DCross Slide Travel500 / 20 mm / inLength of Carriage980 / 38 1/2 mm / inTail Stock Morse Taper6 MTSwing Over Bed1010 / 40 mm / inTail Stock Barrel120 / 14 3/4 mm / inTotal Weight7600 KgBed Width500 / 20 mm / inRapid Traverse Z10 m/minStations of Standard Automatic Turret8Main Motor Power22 kWTotal Length5557 mmCenter Distance3000 / 120 mm / inRepeatability0.01 mmFollow Rest Capacity35-310 / 2 1/2-12 1/4 mm / inCoolant Pump Power0.57 kWCoolant Tank Capacity250 LTotal Width2202 mmCenter Height500 / 20 mm / inLength of Cross Slide950 / 37 mm / inWorking Feeds Z X0-7000 mm/minZ Axis Ball Screw and Pitch50/10 mmX Axis Ball Screw and Pitch32/5 mmVerification StandardDIN 8605Swing Over Cross Slide718 / 28 mm / inPosition Accuracy0.01 mmFixed Steady Capacity370-730 / 14 1/2-28 3/4 mm / inSwing Over Carriage935 / 37 mm / inMain Spindle Nose Taper5 MTTail Stock Barrel Travel300 / 12 mm / inTool Shank32x32 / 1 1/4 x 1 1/4 mm / inBoring Bar50 / 2 mm / inHeadstock Main Spindle Bore155 / 6 mm / in
