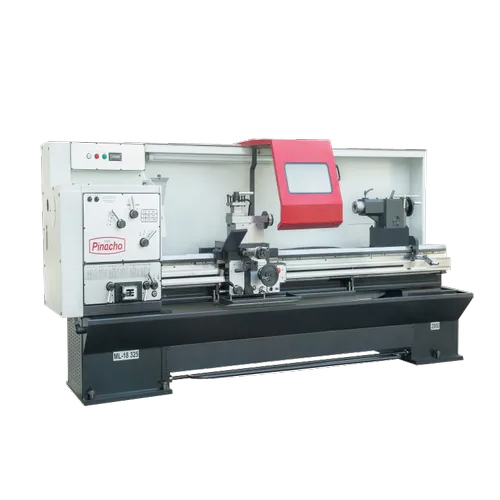

7.5 kW Conventional Lathe Machine

Product Description

Fixed Steady Capacity10-180 / 1/2-7 1/4 mm / inTool Post Slide Travel165 / 6 1/2 mm / inMain Motor Power7.5 kWVerification StandardDIN 8605Swing Over Carriage595 / 23 mm / inCross Slide Travel340 / 12 3/4 mm / inModular Threads0.25-7.5 mmMetric Threads0.5-15 mmFollow Rest Capacity10-140 / 1/2-5 1/2 mm / inCoolant Tank Capacity81 LTotal Height1825 mmSwing Over Cross Slide560 / 22 mm / inType of HeadstockCabezal con variador de velocidad electronicoTool Shank25x25/1x1 mm / inTotal Width1080 mmWhitworth Threads60-2 T.P.I.Center Distance1000 / 40 mm / inTail Stock Barrel95 / 3 3/4 mm / inSwing Over Bed652 / 26 mm / inLongitudinal Feeds0.05-1.5 mm/revCross Feeds0.025-0.752 mm/revPich Diametral Threads120-4 D.P.Coolant Pump Power0.1 kWTotal Length2700 mmSwing Over Gap910 / 35 3/4 mm / inHeadstock Main Spindle Bore80 / 3 mm / inMain Spindle NoseA2-8 / D1-8Tail Stock Morse Taper5 MTCenter Height325 / 13 mm / inTotal Weight1750 KgBed Width350 / 14 mm / inGap Length From Face Plate220 / 9 mm / inNorton Box No Threads and Feeds55Lead Screw Rod Pitch6/ 1/4 mm / inTail Stock Barrel Travel220 / 8 1/2 mm / in
